Description

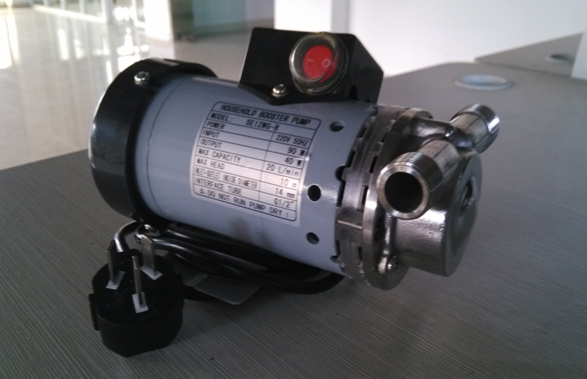

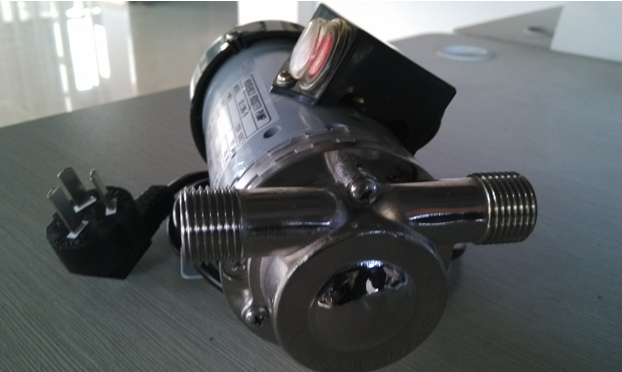

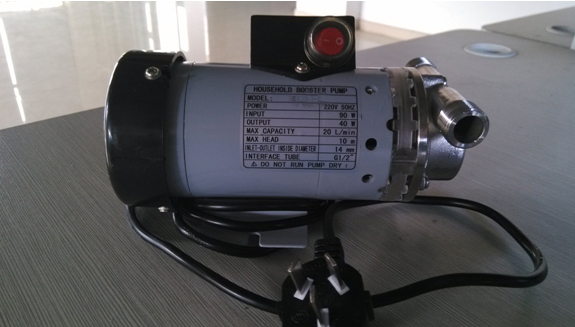

1.Water Booster Pumps
2.Automatic Controlled Switch
3.stainless steel Pump Body/ Impeller
4.Class F Grade/Class IP54 Grade
| Max. flow |
Rated flow |
Max. head |
Rated head |
Motor input power |
Motor output power |
Inlet/outlet diameter |
Connecting line |
Environment tem. |
Liquid tem. |
Vol./Fre. |
| 20l/min |
10l/min |
10m |
8m |
90W |
40W |
15mm |
G3/4 inch |
0-40°C |
0-100°C |
110V/60HZ |
Advantages:
Singel phase motor with AU plug,with ISO9001 certification.CCC certification.We can also make CE or UL according to clients' need.

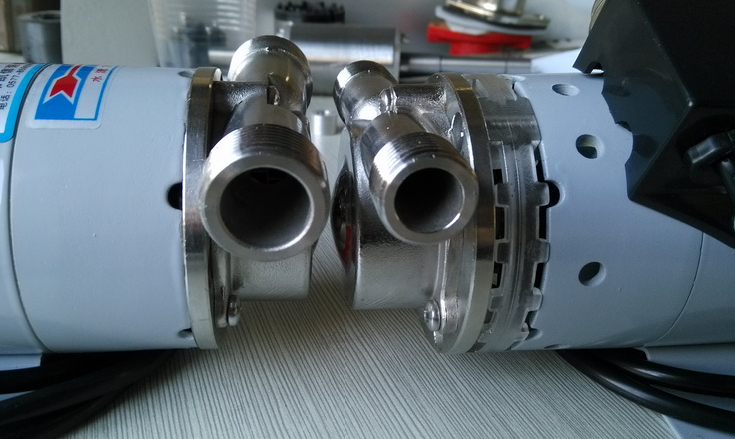

1.Stainless steel booster pump.pump head and impeller are all stainless steel,is used for delivery beer and liquid food.
2.The red button is the new waterproof switch design..The button is used to control the pump.
3.The pump with stainless steel material,with heat sink,the pump end with cooling fan,with thermal protector in the motor.
4.The lifetime is longer.
Feature:
Health and clean; Small volune, Low noise, long service life. Motor with thermal protector, prolong the service life of motor
Food production and transmission;Such as beer or wine,milk.
Flat water tower, increase the pressure not enough hydraulic pressure of water heater,increase the pressure;
Cooling circulation of industry equipment.
|
